Application:

Spare Parts for John Deere Tractor ： 4000 Series

Spare Parts for John Deere Combine Harvester : 9000(used for engine 6076A/T)

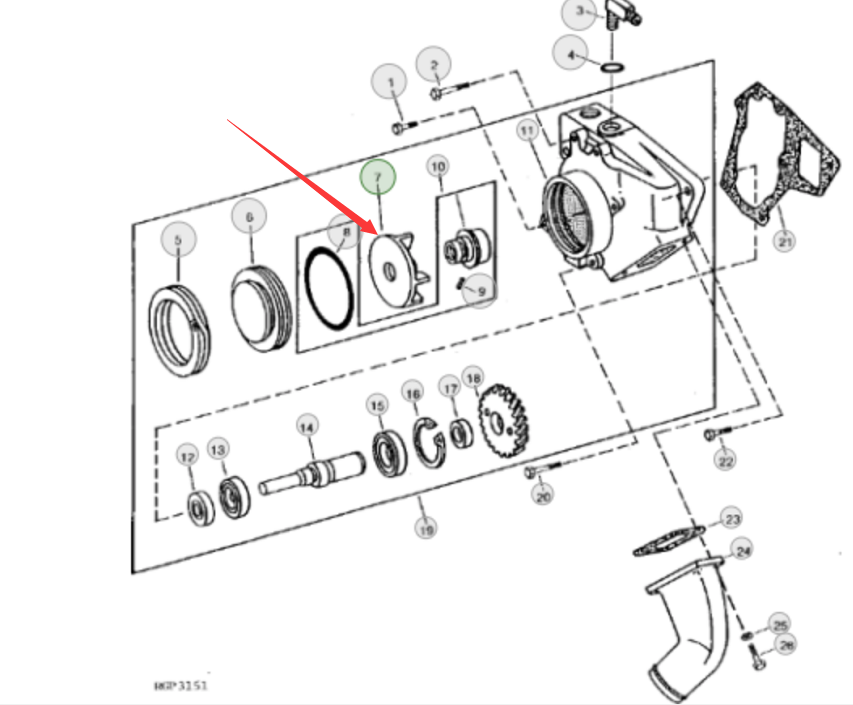

How was a water pump impeller works?

An impeller is a rotating component of a centrifugal pump which transfers energy from the motor that drives the pump to the fluid being pumped by accelerating the fluid outwards from the center of rotation. The velocity achieved by the impeller transfers into pressure when the outward movement of the fluid is confined by the pump casing. An impeller is usually a short cylinder with an open inlet (called an eye) to accept incoming fluid, vanes to push the fluid radially, and a splined, keyed, or threaded bore to accept a drive shaft.

The impeller made out of cast material in many cases may be called rotor, also. It is cheaper to cast the radial impeller right in the support  it is fitted on, which is put in motion by the gearbox from an electric motor, combustion engine or by steam driven turbine. The rotor usually names both the spindle and the impeller when they are mounted by bolts
